Line Installation Positions on the Shield:

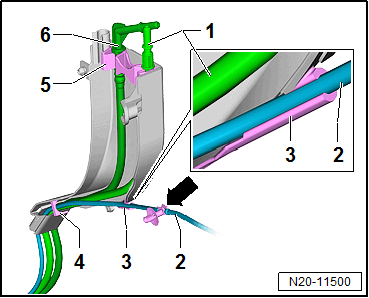

Fig 1: Installation Position of Fuel Lines on the Shield:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Fuel Supply Line
2. Parking/Auxiliary Heater Fuel Line
3. Guide for Parking/Auxiliary Heater Fuel Line
4. Lower Cable Guide
5. Bracket for Lines in Coupling Rod Area
6. Bleeder Line

-- Slide in the fuel lines together from front to back.

-- Clip the lines in the bracket on the underbody -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then clip in the bracket on the underbody.

Installation position of the fuel lines on the coupling point in engine compartment:

Fig 2: Identifying Expansion Tank

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Fuel Supply Line
2. Bleeder Line

Installation position of the fuel lines on the underbody:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

2 -  Bleeder Line

3 -  Fuel Supply Line

4 -  Parking/Auxiliary Heater Fuel Line

Tightening Specifications:

• Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
• Refer to Underbody Trim Panel .
