Overview - Front Wheel Housing Liner
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Depending on the model version, slight deviations of the front wheel housing liner must be considered when removing and installing.

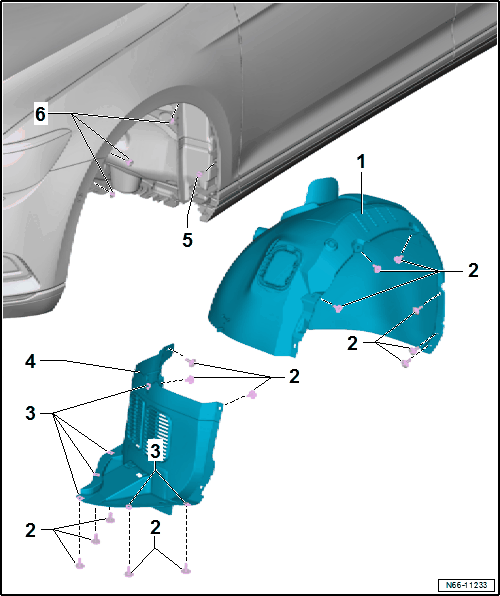

The illustration shows the left side. The procedure for the right side is identical.
- Front Wheel Housing Liner
- PP/EPDM material
- Removing and installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 11 on each side
- 2.0 Nm
- Spring Nut
- Quantity: 6 on each side
- Wheel Housing Liner Front Section
- PP/EPDM material
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Expanding Nut
- Quantity: 2 on each side
- Locking Mechanism
- Quantity: 4 on each side
- 2.0 Nm
