Overview - EVAP System, With Fuel Tank Leak Detection

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

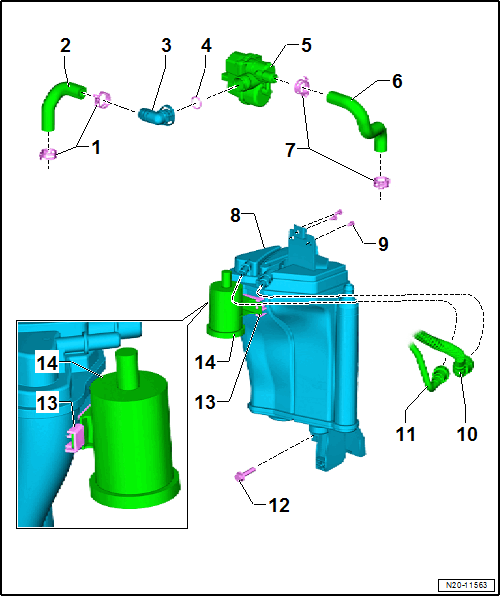

Fig 1: Exploded View Of EVAP System, With Fuel Tank Leak Detection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hose Clamp
Connecting Hose
- From the air filter to the leak detection pump
Connection
Seal
- Replace if damaged
Leak Detection Pump
- Removing and Installing. Refer to LEAK DETECTION PUMP, REMOVING AND INSTALLING .
Connecting Hose
- From the air filter to the leak detection pump
Hose Clamp
EVAP Canister
- Component location: behind the wheel housing liner inside right rear wheel housing
- Removing and Installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, VEHICLES WITH FUEL TANK LEAK DETECTION .
Bolts
- 2.5 Nm
Bleeder Line
- To the fuel tank
Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
Bolt
- 20 Nm
Mount
- For the air filter
Air Filter
- Removing and Installing. Refer to EVAP SYSTEM AIR FILTER, REMOVING AND INSTALLING, VEHICLES WITH FUEL TANK LEAK DETECTION .
