Leak Detection Pump, Removing And Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Only for vehicles with fuel tank leak detection
-- Remove the EVAP canister. Refer to EVAP CANISTER, REMOVING AND INSTALLING, VEHICLES WITH FUEL TANK LEAK DETECTION .
-- Remove the air filter. Refer to EVAP SYSTEM AIR FILTER, REMOVING AND INSTALLING, VEHICLES WITH FUEL TANK LEAK DETECTION .

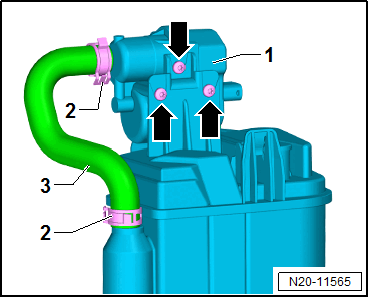

-- Open the hose clamp -2- and remove the breather line -3- on the diagnostic pump.
-- Remove the bolts -arrows- and remove the diagnostic pump -1-.
