Connection Diagram - EVAP System, Vehicles With Fuel Tank Leak Detection

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

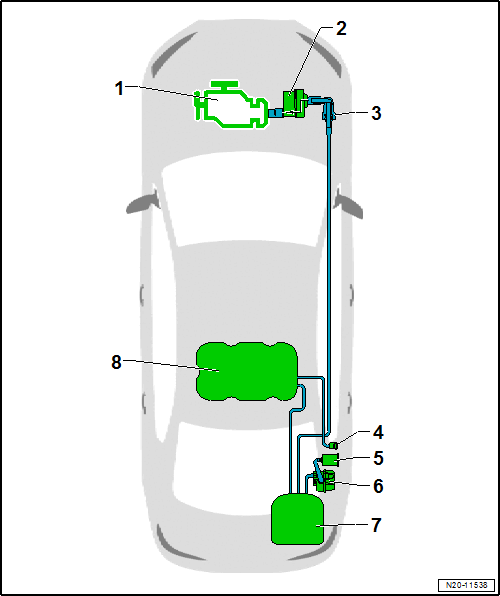

Engine
EVAP Canister Purge Regulator Valve 1 -N80-
- Check using the Vehicle Diagnostic Tester.
Bleeder Line
- From the EVAP canister to engine
Cap
- Seal must not be dirty or damaged
Air Filter
- Only for vehicles with fuel tank leak detection
Leak Detection Pump
- Only for vehicles with fuel tank leak detection
- Removing and Installing. Refer to LEAK DETECTION PUMP, REMOVING AND INSTALLING .
EVAP Canister
- Component location: under the wheel housing liner in the right rear wheel housing
- Removing and Installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, VEHICLES WITH FUEL TANK LEAK DETECTION .
Fuel Tank
- Overview. Refer to OVERVIEW - FUEL TANK .
- Removing and Installing. Refer to FUEL TANK, REMOVING AND INSTALLING .
