All-Wheel Drive Clutch, Removing And Installing, Generation VI: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

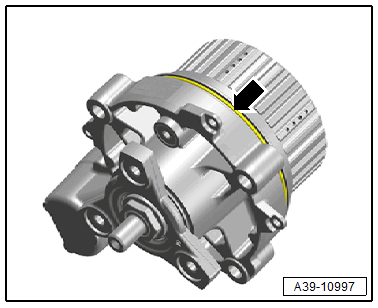

-- Remove the original O-ring -arrow- from the all-wheel drive clutch.

-- Lightly coat the new sealing ring with all-wheel drive clutch oil and insert it in the groove.

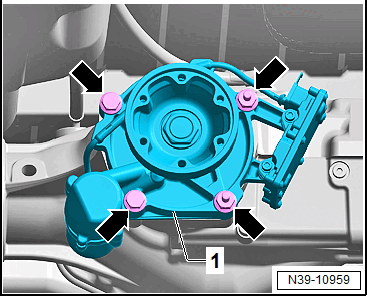

-- Insert the all-wheel drive clutch -1- in the rear final drive. Install the Guide Pins:T10093 for exact guidance.

Fig 1: Haldex Clutch In Rear Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

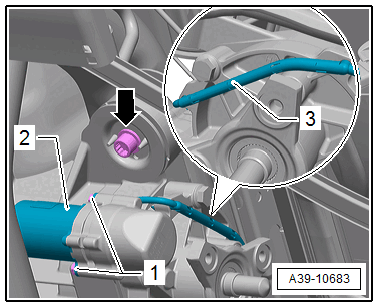

-- Rotate at flange/driveshaft -2- and insert the all-wheel drive clutch all the way.

-- Tighten the bolts -arrows- to the tightening specification in a diagonal sequence.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the wiring harness -3- of the All-Wheel Drive Clutch Control Module -- onto the all-wheel drive clutch housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the connector -1- to the All-Wheel Drive Control Module -J492-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the driveshaft to the rear final drive. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

-- Fasten the pendulum support on the transmission with new bolts -1-. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the driveshaft heat shield. Refer to DRIVESHAFT HEAT SHIELD, REMOVING AND INSTALLING .

-- Install the exhaust system and align it without tension. Refer to OVERVIEW - MUFFLER .

-- Add High Performance All-Wheel Drive Clutch Oil and check the oil level in the all-wheel drive clutch. Refer to ALL-WHEEL DRIVE CLUTCH OIL, DRAINING AND FILLING .
