All-Wheel Drive Clutch, Removing And Installing, Generation V: Installing

Install in the reverse order of removal while noting the following:

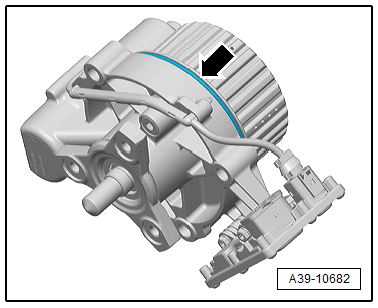

-- Remove the old O-ring -arrow- from the all-wheel drive clutch.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the new O-ring -arrow- and lightly lubricate with High Performance All-Wheel Drive Clutch Oil.

-- Insert the all-wheel drive clutch -1- in the rear final drive. Install the Guide Pins:T10093  for exact guidance.

Fig 1: Haldex Clutch In Rear Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Rotate at flange/driveshaft -2- and insert the all-wheel drive clutch all the way.

-- Tighten the bolts -arrows- to the tightening specification.

Fig 2: Identifying Haldex Clutch To Rear Final Drive Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the connector -B- to the All-Wheel Drive Control Module -J492- -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the connector -C-.

-- Remove the Engine Support:T50015A  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the driveshaft to the rear final drive. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

-- Tighten the pendulum support with new bolts -1- and -2- on the transmission. Refer to OVERVIEW - SUBFRAME .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If removed, install the center tunnel heat shield under the intermediate bearing. Refer to COMPONENT LOCATION OVERVIEW - HEAT SHIELD .

-- Install the exhaust system and align it without tension. Refer to OVERVIEW - MUFFLER .

-- Add High Performance All-Wheel Drive Clutch Oil and check the oil level in the all-wheel drive clutch. Refer to ALL-WHEEL DRIVE CLUTCH OIL, DRAINING AND FILLING .

• If a new All-Wheel Drive Clutch Pump -V181- is being installed, a basic setting must be performed after installing.
