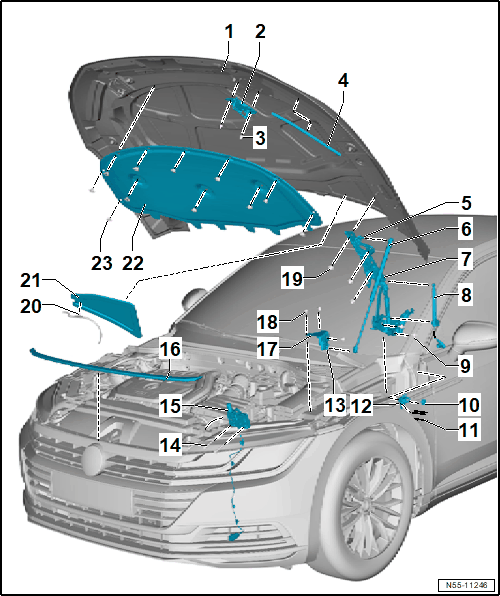

Overview - Hood
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Hood
- Removing and installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
- Striker
- Left and right
- Removing and installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Nut
- Quantity: 2 on each side
- 8 Nm
- Side Seal
- Right and left
- Ball Pin
- Mount for gas-filled strut
- Hinge component
- Gas-Filled Strut
- Removing and installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Hinge
- Removing and installing. Refer to HINGES, REMOVING AND INSTALLING .
- Hinge, Resetting. Refer to HINGE, RESETTING .
- Pedestrian Protection Trigger
- Right side: Pedestrian Protection Trigger 1 -G598-
- Left side: Pedestrian Protection Trigger 2 -G599-
- To remove and install the Pedestrian Protection Trigger 1 -G598- /Pedestrian Protection Trigger 2 -G599-. Refer to PEDESTRIAN PROTECTION TRIGGER 1 -G598- / PEDESTRIAN PROTECTION TRIGGER 2 -G599-, REMOVING AND INSTALLING .
- Bolt
- For attaching the hinge
- Quantity: 2 on each side
- 20 Nm
- Adjusting Buffer
- Pop Rivet
- Quantity: 3 on each side
- Retaining Bracket
- For the hood adjusting buffer
- Ball Pin
- Mount for gas-filled strut
- Retaining bracket component
- Bolt
- Quantity: 2 on each side
- 12 Nm
- Replace after every removal
- Latch
- Left and right
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING .
- Trim Molding
- Retaining Bracket
- For the gas-filled strut mount
- Bolt
- Quantity: 3 on each side
- 8 Nm
- Nut
- For attaching the hood
- Quantity: 3 on each side
- 20 Nm
- Clip
- For electrical wire
- Cover
- Preparing to install in a new hood. Refer to Preparing the cover for installation .
- Insulation
- Removing and installing. Refer to INSULATION, REMOVING AND INSTALLING .
- Clip
- Quantity: 11
- For mounting the damper
