Striker, Adjusting

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench, 6-50Nm:VAG 1331A

Fig 1: Ident ifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

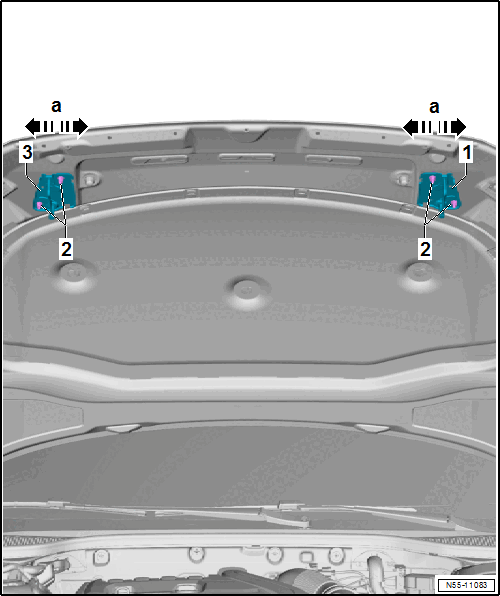

-- Loosen the hex nuts -2-.

-- The strikers -1 and 3- on the hood can now be adjusted sideways in the oblong holes.

Tightening Specifications

Hinges. Refer to OVERVIEW - HOOD .
