Latch, Adjusting

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Adjustment Gauge:3371

Fig 1: 3371 Special Tool
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench, 6-50Nm:VAG 1331A

Fig 2: Ident ifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Use new bolts to adjust the latch.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

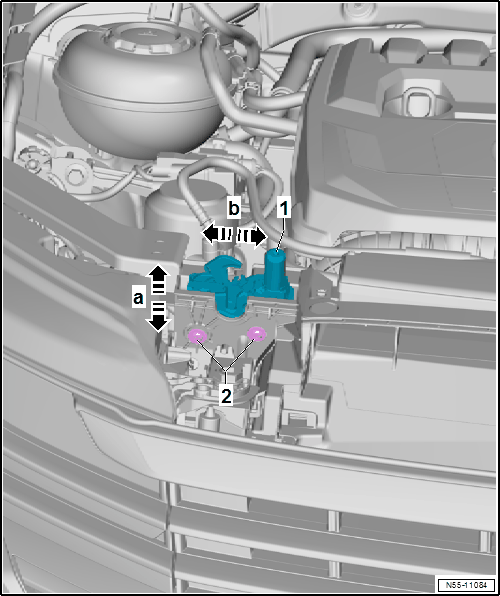

-- Loosen the bolts -2-, and adjust the left and right latches -1- for the hood sideways -arrow b- and for height -a arrows-.

Tightening Specifications

Latch. Refer to OVERVIEW - RELEASE CABLE
