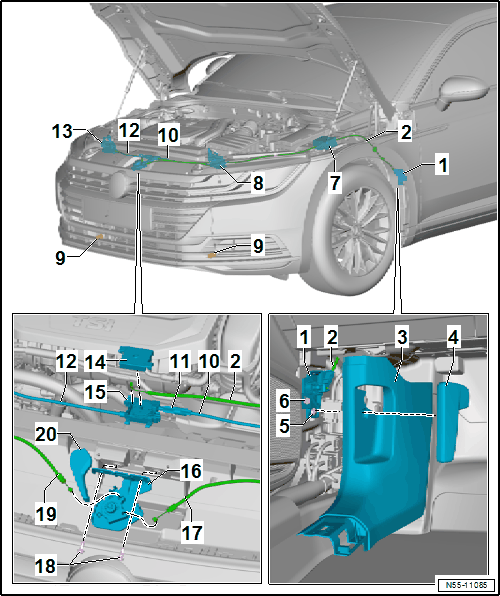

Overview - Release Cable
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Mounting Bracket
- Release Cable
- From mounting bracket -1- to coupling -15-
- A-Pillar Trim Panel
- Removing and Installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING
- Inner Release Lever
- Removing and installing. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 1
- 1.5 Nm
- Expanding Nut
- Quantity: 1
- Foam Piece
- Left Latch
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING .
- Connector
- Release Cable
- From the couping -15- to the left latch -8-
- Adjusting Screw
- To adjust synchronous movements at the latches.
- Release Cable
- From the coupling -15- to the right latch -12-
- Right Latch
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING .
- Cap
- Release Cable Coupling
- Release
- Release Cable
- From the release -16- to the left latch -8-
- Bolt
- Quantity: 2
- 8 Nm
- Release Cable
- From the release -16- to the right latch -12-
- Front Release Lever
