Hinges, Adjusting
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The hex nuts -3- and bolts -2- are not removed, just loosened.

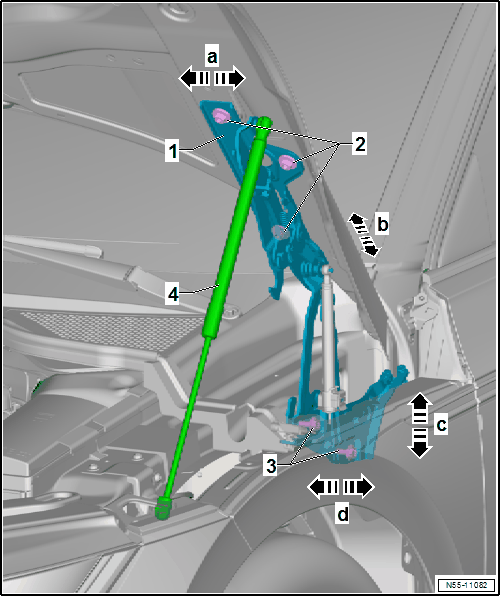

-- By loosening the hex nuts -2- on the left and right lid hinges -1-, the hood can be adjusted from side to side -arrow a- and lengthwise -arrow b- between the fenders and doors.
-- By loosening the bolts -3- on the left and right lid hinges -1-, the hood can be adjusted in height -arrow c- and lengthwise -arrow d- between the fenders and doors.
-- Make sure the gap dimensions are even.
-- After adjusting, apply corrosion protection on the lid hinges -1-, the hex nuts -3-, and the bolts -2-.
-- If necessary, reposition the adjusting buffers.
Tightening Specifications
- Hinges. Refer to OVERVIEW - HOOD .
