Parking Aid Bracket, Installing, In Bumper Cover

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

PDC Holder Tool Set:VAS 6614B
PDC Holder Tool Set - Drill Bit:VAS 6614/4
PDC Holder Tool Set:VAS 6614C
PDC Holder Tool Set - Screw Hole Punch Ø18.4:VAS 6614/9

Fig 1: Identifying PDC Holder Tool Set VAS 6614
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Materials

Cleaning Solution:D 009 401 04

⁽¹⁾¹

⁽¹⁾	Follow the manufacturer processing instructions supplied in the packaging.

Bracket, Installing

For the following procedures, the guidelines for temperature, cleaning, removal of adhesive residue and the installation must be met. Refer to COMPONENTS WITH ADHESIVE TAPE, INSTALLATION PREPARATION .

NOTE:

After the bumper cover is painted, install the brackets.

Fig 2: Identifying Markings For Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The four markings for the bracket -1- are found on the inside of the bumper cover.

-- Determine the central point -2-, if not already present.

-- The holes are pre-drilled from the inside outward using the Drill Bit:VAS 6614/4 -3- supplied in the tool kit.

Fig 3: Identifying Position Of Stamping Holes With Bolt Head

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the PDC Holder Tool Set - Screw Hole Punch Ø18.4:VAS 6614/9 with the bolt head -1-, the washer -2- and the counterholder -3- on the inside of the bumper cover -5-.

-- Position the iron punch -4- almost up to the bumper cover.

-- Push the iron punch -4- onto the bumper cover.

-- Tighten the hole stamper -1-.

NOTE:

The iron punch -4- must not rotate on the bumper cover paint.

-- By turning at the bolt head -1-, the iron punch -4- is pulled through the bumper cover material -5- -arrows-.

-- Remove the hole stamper and stamp the next holes.

-- Clean the bumper cover and the bracket thoroughly with cleaning solution and allow it to dry for 10 minutes.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

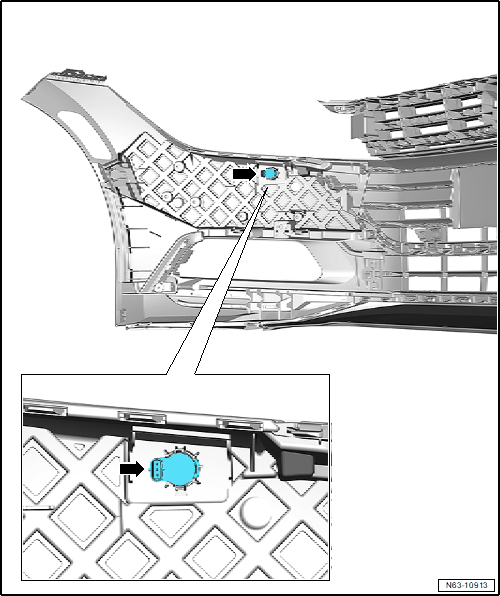

-- Pay attention to the orientation of the bracket according to the alignment of the sensors -arrows-.

-- Align the connections of the outer sensors are aligned outward -arrows-.

-- The inner sensors are aligned outward and are described in the chapter Parking System Bracket, Removing and Installing - in air grille. Refer to Removing .

Fig 4: Identifying Hole Stamper Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Thoroughly clean the adhesive surfaces on the bumper cover -4- and let it dry for 10 minutes.

-- Slide the bracket -2- onto the centering drift -1-.

-- Remove the protective film on double-sided adhesive tape -3- on the bracket.

-- Guide the centering drift -1- through the hole until the bracket makes contact on the bumper cover -4-.

-- Press on the bracket firmly near the adhesive surface -3-.

-- Remove centering drift and repeat this step on all brackets.

-- Any further work on the bumper cover can only be done after the minimum curing time. Refer to PARKING AID BRACKET, INSTALLING, IN BUMPER COVER.

Minimum Curing Time

Wait two hours for the minimum curing time before performing any further work on the bumper cover and the bracket.

Observe the minimum curing time so that the full adhesive strength of the adhesive tape can develop.

The bumper cover must stay in place and may not be moved during this time.
