Overview - Bumper Cover, R-Line, NAR

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

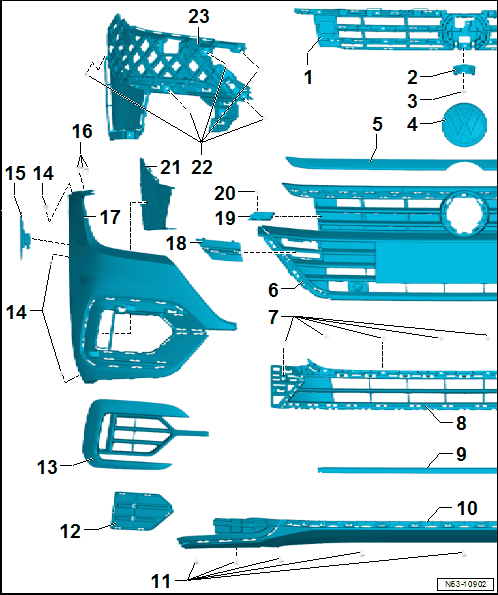

Fig 1: Exploded View Of Bumper Cover (R-Line, NAR)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Reinforcement
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Support
Bolt
- 8 Nm
Emblem
- Brand Emblem
- Removing and installing. Refer to FRONT EMBLEMS, REMOVING AND INSTALLING .
Trim
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Radiator Grille
- Removing and installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
Bolts
- Quantity: 8
- 2 Nm
Air Supply
- Center
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Trim Molding
- Center
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Spoiler
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Bolts
- Quantity: 10
- 2 Nm
End Plates
- Quantity: 2
- Depending on vehicle equipment
Air Guides
- Quantity: 2
- Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
Bolts
- Quantity: 6
- 3 per side
- 2 Nm
Side Marker Lamp
- Removing and Installing. Refer to the appropriate Service Information .
Bolts
- Quantity: 6
- 3 per side
- 2 Nm
Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Servicing. Refer to BUMPER COVER, SERVICING .
Cover
- For the towing eye
Emblem
- R-Line
- Removing and installing. Refer to RADIATOR GRILLE NAME BADGES AND EMBLEMS, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - RADIATOR GRILLE .
Covers
- Quantity: 2
Bolts
- Quantity: 10
- 5 per side
- 2 Nm
Supports
- Quantity: 2
