Overview - Radiator Grille

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

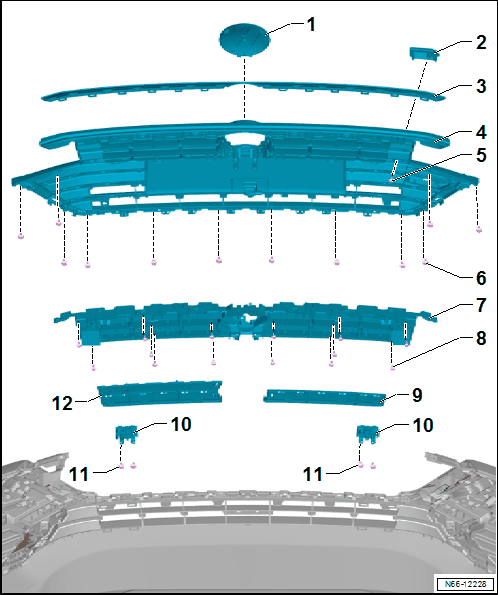

Fig 1: Exploded View Of Radiator Grille

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Emblem
- VW Emblem
- Removing and installing. Refer to FRONT EMBLEMS, REMOVING AND INSTALLING .
Emblem
- R-Line
- Removing and installing. Refer to RADIATOR GRILLE NAME BADGES AND EMBLEMS, REMOVING AND INSTALLING .
Seal
Radiator Grille
- Removing and installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Bolts
- Quantity: 12
- 2 Nm
Reinforcement
- Removing and installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
Bolts
- Quantity: 14
- 2 Nm
Cover
Bracket
- For the parking aid sensor
- Removing and installing. Refer to PARKING AID BRACKET, REMOVING AND INSTALLING, IN AIR GRILLE .
Bolts
- Quantity: 4
- 1 Nm
Cover
