Overview - Lock Carrier

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Bumper Adjusting Tool:T40281

Fig 1: Adjusting Tool T40281
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

There are different versions. Refer to the appropriate Electronic Parts Information.

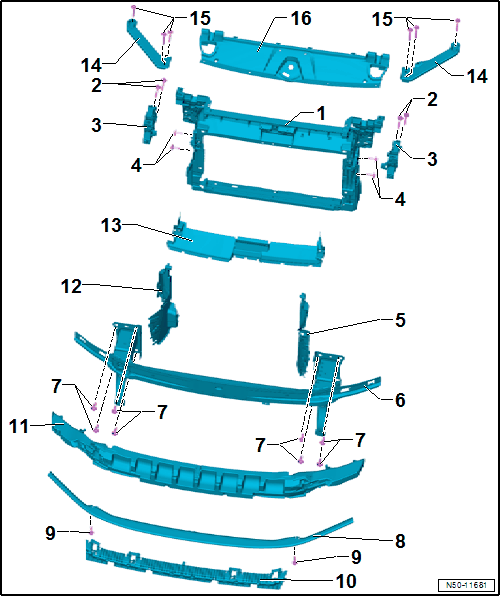

Fig 2: Exploded View Of Lock Carrier

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lock Carrier with Attachments
- Removing and installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Service Position, Implementing and Resetting. Refer to SERVICE POSITION, SETTING AND RESETTING .
Bolts
- Quantity: 2 on each side
- 8 Nm
Bracket
- Left and right
- Two-part
- Use the Bumper Adjusting Tool:T40281 to adjust the adjusting screw
Bolts
- Quantity: 2 on each side
- 8 Nm
Air Duct
- Left
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
Bumper Carrier
Bolts
- Quantity: 4 on each side
- 55 Nm
Pedestrian Protection
- Not installed in all markets
Pop Rivet
- Quantity: 2
Guide
Foam Piece
Air Duct
- Right
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
Air Duct
- Upper
Support
- Left and right
Bolts
- Quantity: 3 on each side
- 8 Nm
Cover
- Removing and installing. Refer to Cover, Removing .
