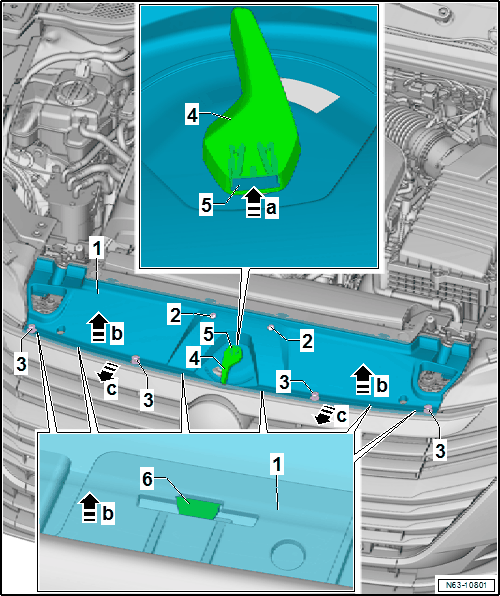

Cover, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clamp -5- in the operating lever -4- -arrow a-.

-- Remove the operating lever -4- upward.

-- Remove the clips -3-.

-- Remove the bolts -2-.

-- Remove the cover -1- upward from the catches -6- -arrow b-.

-- Remove the cover -1- forward out of the guide -arrow c-.

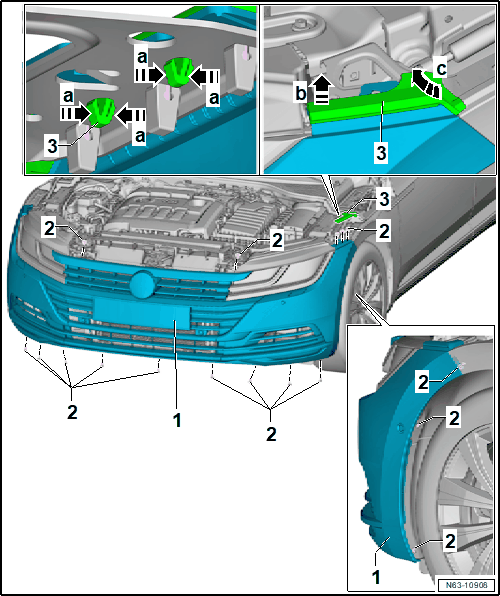

Remove the bumper cover.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brand emblem. Refer to FRONT EMBLEMS, REMOVING AND INSTALLING .

-- Remove the Control Module for Adaptive Cruise Control -J428-. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL -J428-, REMOVING AND INSTALLING .

-- Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Loosen the catches -3- on the covers -arrow a-.

-- Pull the cover -3- forward slightly upward -arrow b- and then pivot out under the fender -arrow c-.

-- Remove the bolts -2-.

A second technician is required for the rest of the removal procedure.

-- Remove the bumper cover -1- from the vehicle.

-- Disconnect the hose coupling for the washer fluid hoses (where applicable). Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .

-- Disconnect the connectors for the electrical components (where applicable).

For notes and procedures regarding the parking aid. Refer to OVERVIEW - PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING .

For notes and procedures regarding the parallel parking assists. Refer to OVERVIEW - PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING .

For notes and procedures for the peripheral camera. Refer to GENERAL INFORMATION - PERIPHERAL CAMERA .

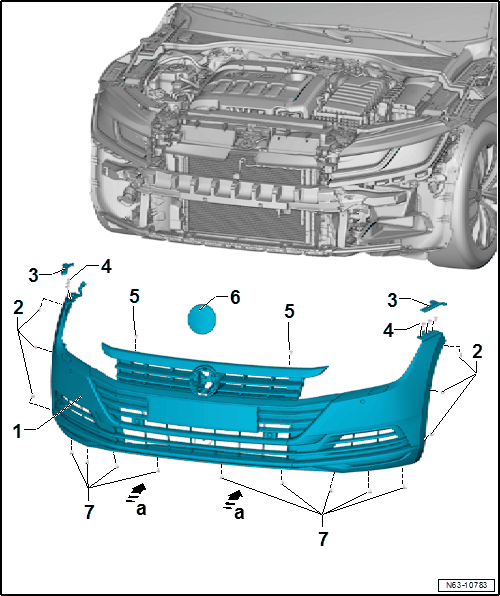

Bumper Cover, Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in the reverse order of removal while noting the following:

Installation is only possible with a second technician.

-- Connect the connectors from any electrical components.

-- Guide the bumper cover -1- on the lock carrier -a arrows-.

-- Install the Control Module for Adaptive Cruise Control -J428-. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL -J428-, REMOVING AND INSTALLING .

-- Pay attention to the gap dimensions.

-- Adjust the bumper cover with the radiator grille to the hood.

• Lengthwise with the bolts -5-.
• Refer to LOCK CARRIER for height. The bolts are located in the bracket -3-. Adjustments are done using the Bumper Adjusting Tool:T40281  .

Tightening Specifications

• Refer to OVERVIEW - BUMPER COVER

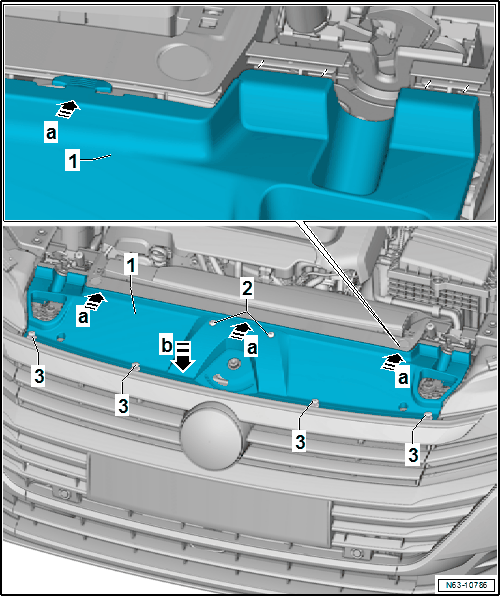

Cover, Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the cover -1- into the guide -a arrows-.

-- Press the cover -1- into the catches -arrow b- and secure with the clips -3-.

-- Tighten the bolts -2-.

-- Press on the operating lever.

Tightening Specifications
