Overview - Charge Air System

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

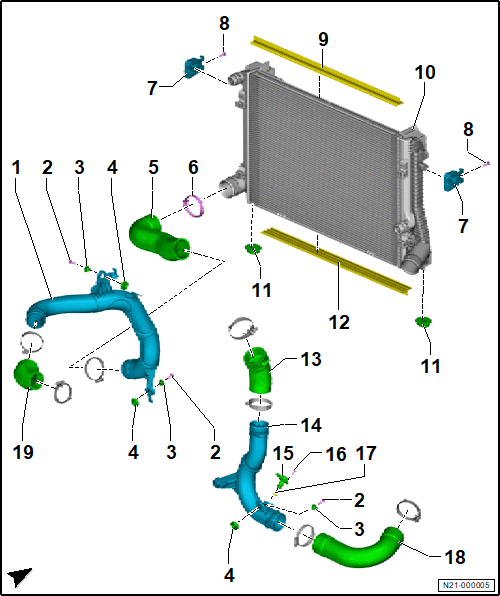

Fig 1: Exploded View Of Charge Air System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Air Duct Pipe
- Refer to Left Air Duct Pipe, Removing and Installing .
Bolt
- 7 Nm
Sleeve
Grommet
Charge Air Hose
Clamp
- Refer to [For engine(s) DSFB] Charge Air Hose Connections .
Radiator Mount
- Quantity: 2
Bolt
- 5.5 Nm
- For repairs
- Quantity: 2
Sealing Strip
Charge Air Cooler
- Refer to [For engine(s) DSFB] Charge Air Cooler, Removing and Installing .
Rubber Bushing
- Quantity: 2
Sealing Strip
Charge Air Hose
Front Air Duct Pipe
- Refer to Front Air Duct Pipe, Removing and Installing .
Charge Air Pressure Sensor -GX26-
- With Charge Air Pressure Sensor -G31-
- With Charge Air Temperature Sensor -G1001-
- Refer to CHARGE AIR PRESSURE SENSOR GX26, REMOVING AND INSTALLING .
Bolt
- 5 Nm
O-Ring
Charge Air Hose
Charge Air Hose
