Catalytic Converter, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Loosely install the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

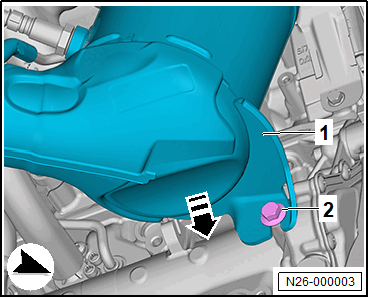

-- Attach the catalytic converter -1- in direction of -arrow-.

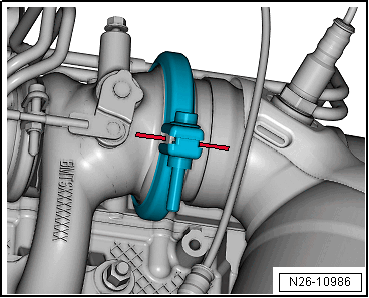

-- Align the clamp to the marking.

Fig 1: Positioning the Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the clamp -1- and the bolt -2-. Refer to Overview - Emissions Control System .

Fig 2: Catalytic Converter - Tightening Specification and Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Refer to Exhaust System, Installing without Tension .
