Overview - Cylinder Head
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Cylinder Head Gasket
- Bolt
- 10 Nm +90°
- Replace after removing
- Quantity: 2
- Engine Lifting Eye
- Partition Plate
- Quantity: 4
- Bolt
- 10 Nm +90°
- Replace after removing
- Quantity: 2
- Engine Lifting Eye
- Cylinder Head
- Refer to Cylinder Head, Removing and Installing .
- Refer to Cylinder Head, Checking for Distortion .
- Bolt
- Replace after removing
- Tightening Specifications and Sequence. Refer to Fig 2.
- Quantity: 4
- Bolt
- 20 Nm
- Bracket
- Heat Shield
- Bolt
- 8 Nm
- Nut
- 8 Nm
- Nut
- 8 Nm
- Bolt
- 10 Nm
- Plug
- 20 Nm
- Bolt
- 9 Nm
- Connection
- O-Ring
- Replace after removing
- Cylinder Head Bolt
- Replace after removing
- Tightening Specifications and Sequence. Refer to Fig 2.
- Quantity: 10
- O-Ring
- Replace after removing
- Connection
- Bolt
- 9 Nm
- Alignment Pin
- Quantity: 2

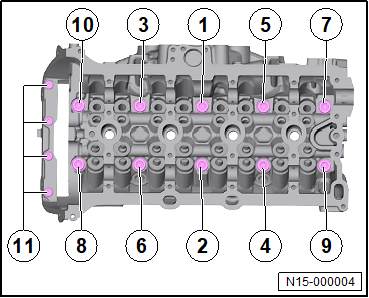

Cylinder Head - Tightening Specifications and Sequence
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 through 10- | Install all the way by hand |
| 2. | -1 through 10- | 50 Nm |
| 3. | -1 through 10- | 90° |
| 4. | -1 through 10- | 90° |
| 5. | -11- | 8 Nm |
| 6. | -11- | 90° |
