Overview - Converter With Socket, 12 V-230 V

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

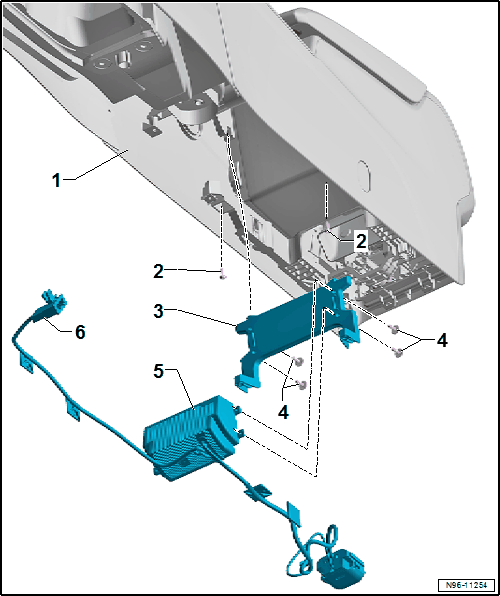

Fig 1: Exploded View Of Converter With Socket, 12 V-230 V

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Console
Bolt
- 1.5 Nm
- Quantity: 2
Bracket
Bolt
- 1.5 Nm
- Quantity: 4
Converter with Socket, 12 V - 230 V -U13-
- Must not be opened.
- No repairs on the connector, on the lines and on the 230 V socket
- Removing and Installing. Refer to Converter with Socket, 12 V - 230 V -U13-, REMOVING AND INSTALLING .
Connector
- 12V - Input Voltage
