Converter with Socket, 12 V - 230 V -U13-, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Screwdriver:VAG1624

Fig 1: Identifying Torque Screwdriver VAG1624
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of electric shocks.

- There are condensers within the housing of the Converter with Socket, 12 V-230 V -U13-, which can be charged with a residual voltage, the housing must not be opened.

- No repairs may be performed on the connector, on the wires and the 230 V socket.

- If there is a fault at the connector, at the wires, at the 230 V socket or in the converter, then the entire unit must always be replaced.

Removing

-- Switch off the ignition and all electrical equipment.

-- Place the ignition key and other drive authorization systems outside of the vehicle interior, to avoid an unintentional start of the vehicle.

Vehicles with damages to the cables in between the Converter with Socket, 12 V-230 V -U13- and the 230 V socket.

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

Continuation for all vehicles

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

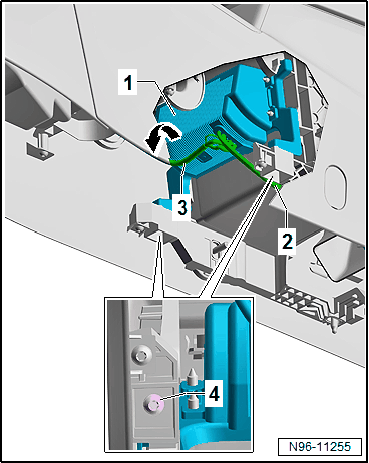

-- Disconnect the connector of the wire -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wire -2 and 3-.

-- Remove the bolts -4-.

-- Remove the Converter with Socket, 12 V-230 V -U13- -1- with the bracket in direction of the -arrow-.

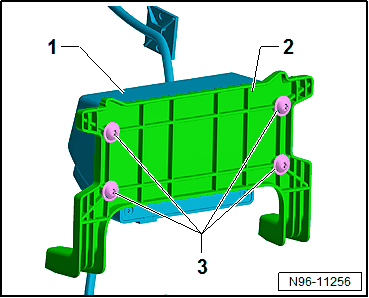

-- Remove the bolts -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Converter with Socket, 12 V-230 V -U13- -1- from the bracket -2-.

Installing:

Install in the reverse order of removal while noting the following:

Tightening Specifications

Refer to OVERVIEW - CONVERTER WITH SOCKET, 12 V-230 V
