Led Headlamp Cover Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the support. Refer to OVERVIEW - LOCK CARRIER .

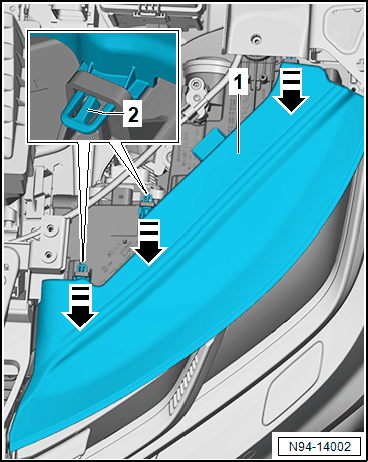

-- Release the tabs -2-.

GWWN94-14002Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover trim -1- in the direction of the -arrow-.
