Wheel Bearing Housing, Removing And Installing, Multi-Link Suspension, AWD: Installing

Install in the reverse order of removal while noting the following:

Complete the following steps in the exact order specified.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the wheel bearing housing -2-.

-- Insert the bolt -1- and tighten hand-tight.

-- Insert the bolt -4- with the washer -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide on the washer -2-.

-- Tighten the nut -1- hand-tight.

-- Place the engine and gearbox jack -1- under the tie rod and push slightly upward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

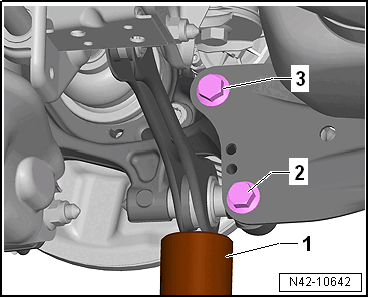

-- Install the bolts -2- and -3- by hand.

-- Remove the engine and gearbox jack -1- from under the tie rod.

-- Install the wheel bearing unit. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .

-- Install the heat shield. Refer to OVERVIEW - REAR BRAKES .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolt -1-.

-- Tighten the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Engine and Gearbox Jack: VAS 6931  from the wheel hub.

Threaded connection of trailing link/wheel bearing housing must only be tightened when all other components (spring and shock absorber always) of the respective wheel suspension have been already assembled. To tighten, suspension must be unloaded. Only now do the trailing arm -2- and wheel bearing housing -1- move into the position required -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the spring. Refer to SPRING, REMOVING AND INSTALLING .

-- Install the spring. Refer to SPRING, REMOVING AND INSTALLING .

-- Tighten the bolts -2- and -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal.

-- For vehicles with a level control system sensor, perform the basic setting using the Vehicle Diagnostic Tester.
