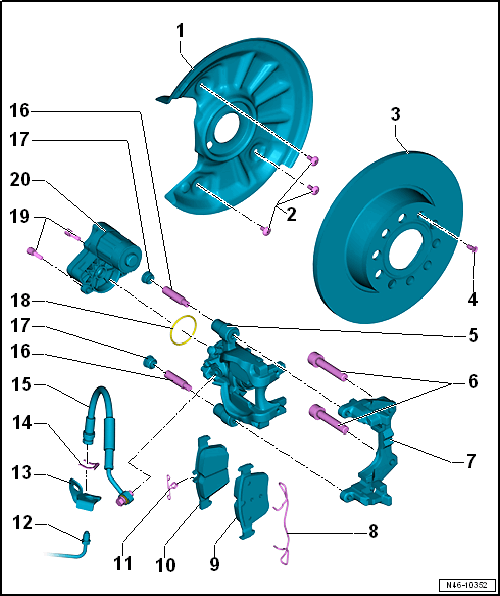

Overview - Rear Brakes
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Use the Brake Filling and Bleeding Equipment:VAS 6860US to extract brake fluid from the brake fluid reservoir.
Install the Brake Pedal Actuator:VAG1869/2 before removing a brake caliper or disconnecting a brake hose (doing so reduces the pressure).
- Brake Shield
- Allocation. Refer to the appropriate Electronic Parts Information.
- TORX®
Bolt
- 12 Nm
- Brake Rotor
- Wear limits. Refer to REAR BRAKES .
- Do not use excessive force to separate the brake rotor from the wheel hub. Use rust remover, if necessary, otherwise the brake rotor could be damaged.
- Replace both sides if worn.
- Before removal, remove the brake caliper and brake carrier
- TORX®
Bolt
- 8 Nm
- Brake Caliper
- Do not remove the brake hose when changing the brake pads.
- Removing and Installing. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .
- Servicing. Refer to REAR BRAKE CALIPER .
- After servicing or replacing perform the "Basic Setting" with the Vehicle Diagnostic Tester.
- Internal Multi-Point Bolt
- Remove and install using the Multipoint Socket:T10035 . Refer to Fig 2.
- Replace after removing
- 90 Nm + 90°
- Brake Carrier
- Spring
- Outer Brake Pad
- Thickness: 11 mm without backing plate
- Wear limit: 2 mm without backing plate
- Thickness, Checking. Refer to FRONT AND REAR BRAKE PAD THICKNESS AND BRAKE ROTOR CONDITION, CHECKING .
- Always replace on both sides of the axle
- Removing and Installing. Refer to BRAKE PADS, REMOVING AND INSTALLING .
- Inner Brake Pad
- With spring
- Thickness: 11 mm without backing plate
- Wear limit: 2 mm without backing plate
- Thickness, Checking. Refer to FRONT AND REAR BRAKE PAD THICKNESS AND BRAKE ROTOR CONDITION, CHECKING .
- Always replace on both sides of the axle
- Removing and Installing. Refer to BRAKE PADS, REMOVING AND INSTALLING .
- Spring
- Installed on the inner brake pad only.
- Pay attention to the installed position.
- Brake Line
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Bracket
- Brake Hose Spring on the Bracket
- Brake Hose with Ring Connection and Banjo Bolt
- To the brake caliper: 35 Nm
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Guide Pin
- 35 Nm
- Caps
- For the guide pins
- Seal
- For the Parking Brake Motor
- Replacing
- Hex Socket Bolt
- 8 Nm
- Parking Brake Motor
- Removing and Installing. Refer to LEFT AND RIGHT PARKING BRAKE MOTOR -V282- / -V283-, REMOVING AND INSTALLING .
Multipoint SocketT10035
