Overview - Wheel Bearing, Multi-Link Suspension, AWD

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

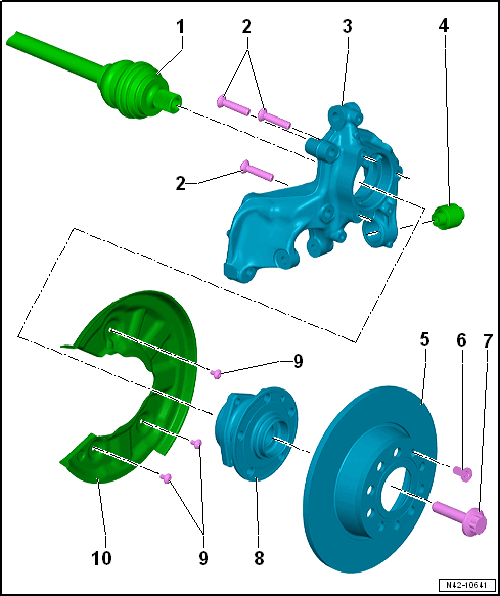

Fig 1: Exploded View Of Wheel Bearing (AWD Vehicles)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Drive Axle
Bolt
- Always replace after removing
- 90 Nm + 90°
Wheel Bearing Housing
- Removing and Installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING, MULTI-LINK SUSPENSION, AWD .
Bonded Rubber Bushing
- Replacing. Refer to WHEEL BEARING HOUSING BONDED RUBBER BUSHING, REPLACING .
Brake Rotor
- Removing and Installing. Refer to OVERVIEW - REAR BRAKES .
Bolt
- Tightening specification. Refer to OVERVIEW - REAR BRAKES .
Bolt
- Loosening and tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING
- Always replace after removing
- Clean the threads in the stub axle with a thread tap first.
- 200 Nm + 180°
Wheel Bearing Unit
- Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING, MULTI-LINK SUSPENSION, AWD .
- The wheel bearing and wheel hub are installed together in a housing.
- The wheel bearing unit is maintenance free and has zero play. Adjusting as well as repair work is not possible!
Bolt
- Tightening specification. Refer to OVERVIEW - REAR BRAKES .
Heat Shield
- Removing and Installing. Refer to OVERVIEW - REAR BRAKES .
