Overview - Bevel Box Components, 0FN

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Characteristics of the bevel box. Refer to BEVEL BOX, DIFFERENTIATING .

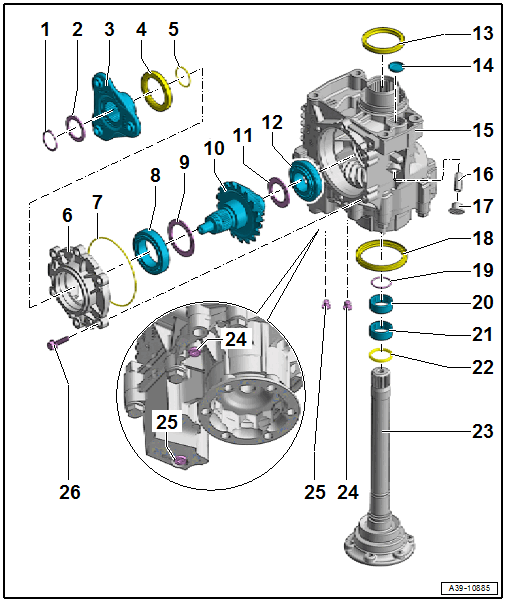

Fig 1: Exploded View Of Bevel Box Components, 0FN

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Circlip
- Replace
Washer
- Replace
Output Flange
- Removing and Installing. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING, 0FN .
Seal
- Replacing. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING, 0FN .
O-Ring
- Replacing. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING, 0FN .
Housing Cover
O-Ring
- Replace
Bearings
- No replacement part
Shim
- No replacement part
Pinion
- No replacement part
Shim
- No replacement part
Bearings
- No replacement part
Seal
- Replacing. Refer to LEFT SEAL, REPLACING .
Cap
Bevel Box
- Removing and Installing. Refer to BEVEL BOX, REMOVING AND INSTALLING .
Bleeder
Bleeder Cap
Seal
- Replacing. Refer to RIGHT SEAL ON BEVEL BOX, REPLACING .
Circlip
Needle Bearing
- Replacing. Refer to RIGHT FLANGE SHAFT NEEDLE BEARING, REPLACING .
Needle Bearing
- Replacing. Refer to RIGHT FLANGE SHAFT NEEDLE BEARING, REPLACING .
O-Ring
Flange Shaft
Fluid Filler Plug
- 20 Nm
Fluid Drain Plug
- 20 Nm
Bolt
- 38 Nm
- tighten in a diagonal sequence
