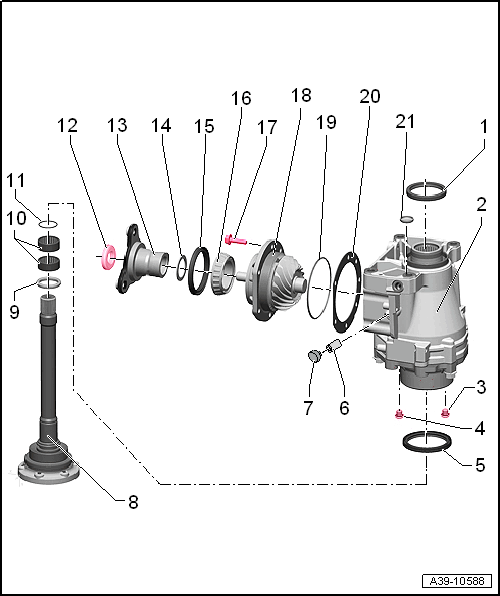

Overview - Bevel Box Components, 0CN
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Characteristics of the bevel box. Refer to BEVEL BOX, DIFFERENTIATING .
- Seal
- Between the bevel box and the transmission
- Replacing. Refer to LEFT SEAL, REPLACING .
- Bevel Box
- Removing and Installing. Refer to BEVEL BOX, REMOVING AND INSTALLING .
- Fluid Drain Plug
- With permanent seal
- Replace after removing
- 20 Nm
- Fluid Filler Plug
- With permanent seal
- Replace after removing
- 20 Nm
- Seal
- For the right flange shaft
- Replacing. Refer to RIGHT SEAL ON BEVEL BOX, REPLACING .
- Bleed Pipe
- For bleeding the bevel box
- Press it in all the way
- Cap
- For bleeding the bevel box
- Right Flange Shaft
- Seal
- Insert into the surrounding right flange shaft groove
- Remove to replace the needle bearing (polygon bearing) -item 10-.
- Needle Bearing (Polygon Bearing)
- Replacing. Refer to RIGHT FLANGE SHAFT NEEDLE BEARING, REPLACING .
- Circlip
- Replace after removing
- Twelve-Point Nut
- Replace after removing
- Secure the new nut by peening. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING, 0CN .
- 340 ±15 Nm
- Output Flange
- Shim
- No replacement part
- Seal
- For bevel box output flange
- Replacing. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING .
- Tapered Bearing Inner Race
- No replacement part
- Bolt
- 38 Nm
- Pinion Housing
- With shaft bevel gear and outer race for tapered roller bearing
- No replacement part
- Carefully pry out, alternating from side to side
- Note the fastening holes; the pinion housing fits only in one position
- O-Ring
- To replace, remove the bolts -item 17- and carefully pry out the pinion housing at the notches in the pinion housing.
- Do not remove the twelve-point nut -item 12- and the output flange -item 13-.
- Shim
- No replacement part
- Note the bevel box fastening holes; the shim only fits in one position
- Cap
- No replacement part
