Overview - Dual Clutch

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Replacement part package

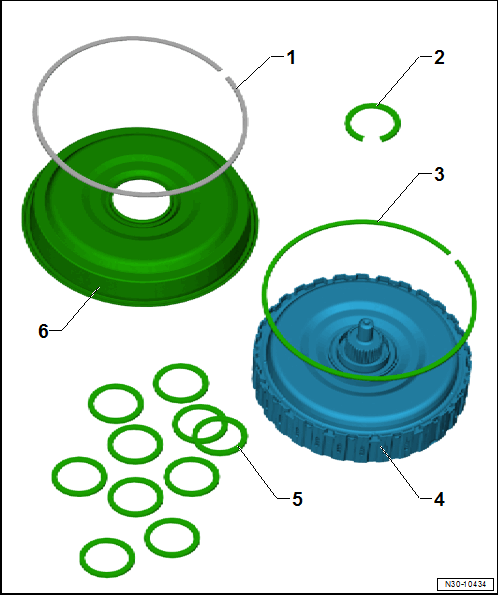

Fig 1: Exploded View Of Dual Clutch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Circlip for Dual Clutch End Cover
- Replace after removing
Dual Clutch Circlip
- Replace after removing
Drive Plate Circlip
Dual Clutch
- Removing. Refer to DUAL CLUTCH, REMOVING .
- Installing. Refer to DUAL CLUTCH, INSTALLING .
Spacer Rings
- 10 spacer rings, that are different >>thicknesses<<. They are staggered in 0.05 mm increments.
- When installing the dual clutch, the thickness of the spacer ring must be determined.
Dual Clutch End Cover
- Replace after removing
- Removing and Installing. Refer to CLUTCH END COVER, REMOVING AND INSTALLING .
