ENGINE FOR Transmission Fluid Auxiliary Hydraulic Pump 1 - V475-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the transmission fluid. Refer to TRANSMISSION FLUID, DRAINING AND FILLING .

-- Release the connector for the Transmission Fluid Auxiliary Hydraulic Pump 1 -V475- -a- and remove the connector -b-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

AWD Vehicles

-- Remove the bevel box. Refer to BEVEL BOX, REMOVING .

Continuation for All:

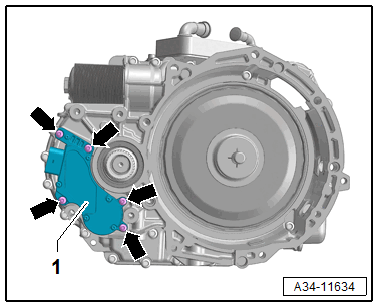

-- Remove the bolts -arrows-. (Shown on a removed transmission.)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

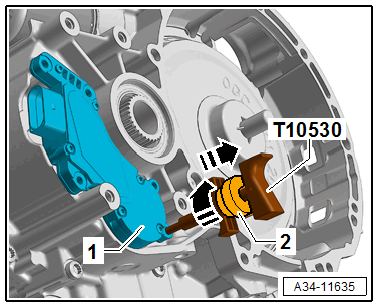

-- Guide the Puller:T10530 in hole.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the knurled nut -2- clockwise until the puller clamps.

-- Using the Puller:T10530 carefully remove the pump motor horizontally to the side.
