Transmission Fluid, Draining And Filling

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Procedure

Special tools and workshop equipment required

TOOLS FOR TRANSMISSION FLUID CHANGE

Test Conditions

Transmission not in emergency operation mode.
Move the vehicle onto a four-column workshop hoist or over a work pit so it is completely level.
Selector lever in "P".
The parking brake button is pulled to activate the electro-mechanical parking brake.
The engine is off.

Transmission Fluid, Draining

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

CAUTION:

Risk of injury to the eyes and hands by escaping oil.

Wear protective eyewear.
Wear acid-resistant safety gloves.

-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

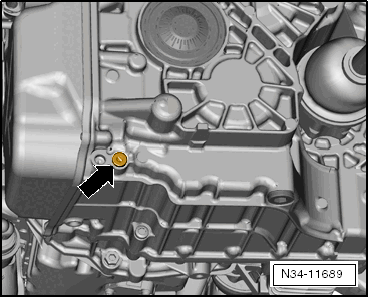

-- Remove the check plug -arrow-.

The collected gear oil then runs out of the overflow tube.

-- Remove the overflow pipe and let the transmission fluid drain.

-- Remove the Mechatronic oil drain plug -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Let the rest of the oil drain.

Tip

Wait approximately 4 minutes, until the entire oil has drained out.

-- Apply the Mechatronic oil drain plug with a new seal and tighten.

Transmission Fluid, Filling

-- Reinstall the overflow pipe -arrow 2- and tighten to the tightening specification.

Fig 1: Identifying Overflow Pipe And Plug

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The overflow pipe must be easy to install.

-- Shake the container before opening.

-- Install the container for the transmission fluid on the Oil Filler:VAS 6262 A .

If necessary, use the Oil Filler - Adapter 6:VAS 6262/6

-- Install the Adapter For Oil Filling:VAS 6262 A into the opening for the check plug -arrow 1- hand-tight.

-- Hold the container with the Oil Filler:VAS 6262A as high as possible over the DSG transmission and allow six liters of transmission fluid to flow into the DSG transmission.

-- Start the engine and let it run in idle.

-- Press the foot brake and shift through all selector lever positions "P, R, N, D/S" at idle, retaining each position for at least 3 seconds.

-- Move the selector lever into "P" position.

-- Do not turn off the engine.

-- Then check the transmission fluid level and add if necessary. Refer to TRANSMISSION FLUID LEVEL, CHECKING .

Tightening Specifications

Refer to OVERVIEW - DRAIN AND CHECK PLUGS
Overview - Noise Insulation. Refer to OVERVIEW - NOISE INSULATION .
