Seat Depth Adjuster, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

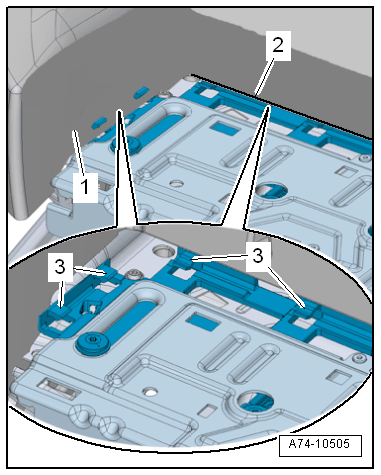

-- Engage the seat cover -1- in the tabs -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the molding strip -2- in the rear retaining tabs -3-.

-- Make sure the retainer is seated correctly.

NOTE:

There is a risk of damaging the locking tabs.

Proceed very carefully when clipping and unclipping.

NOTE:

Both outer bolts have a plastic guide. Refer to OVERVIEW - SEAT DEPTH ADJUSTER .

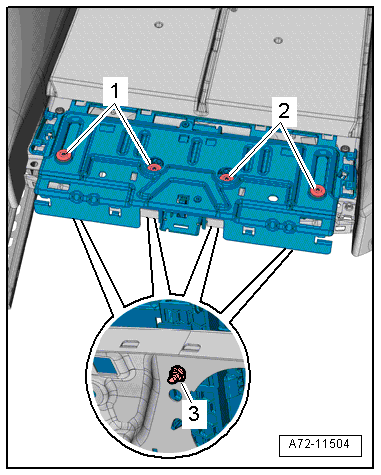

Fig 1: Identifying Nut -3- On Seat Pan Side Of Each Bolt -1 & 2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Ensure the correct allocation.
