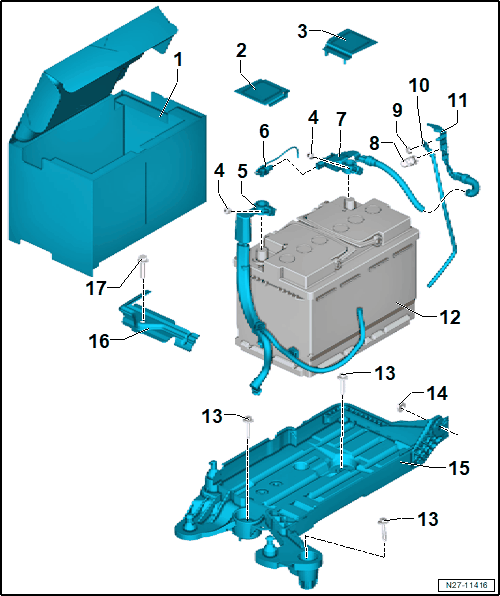

Overview - Battery, Engine Compartment Battery
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Heat Shield Boot
- Positive Terminal Cover
- Negative Terminal Cover
- Nut
- 6 Nm
- Quantity: 2
- Positive Cable
- With battery terminal clamp
- Disconnecting and Connecting. Refer to BATTERY, REMOVING AND INSTALLING, ENGINE COMPARTMENT BATTERY .
- Battery Monitoring Control Module -J367- Connector
- Ground Wire
- With battery terminal clamp and Battery Monitoring Control Module -J367-
- Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, ENGINE COMPARTMENT BATTERY .
- Battery Monitoring Control Module -J367-, Adapting. Refer to Battery Monitoring Control Module -J367-, ADAPTING .
- Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, ENGINE COMPARTMENT BATTERY .
- Nut
- 20 Nm
- Nut
- 9 Nm
- Ground Wire
- Ground Wire
- Battery -A-
- Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, ENGINE COMPARTMENT BATTERY .
- Replacing on vehicles with Start/Stop System. Refer to Vehicles with Start/Stop System .
- Removing and Installing. Refer to BATTERY, REMOVING AND INSTALLING, ENGINE COMPARTMENT BATTERY .
- Bolt
- 9 Nm
- Quantity: 3
- Nut
- 9 Nm
- Battery Tray
- Removing and Installing. Refer to BATTERY TRAY, REMOVING AND INSTALLING, ENGINE COMPARTMENT BATTERY .
- Bracket
- Bolt
- 15 Nm
