Dimensions - Rear Name Badges

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Follow the assembly instructions when installing the name badges. Refer to NAME BADGES, REMOVING AND INSTALLING .

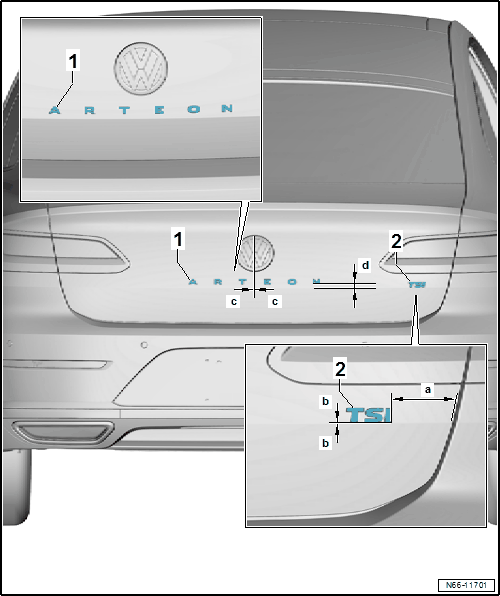

GWWN66-11701Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Name Badge
    • Model name
    • The height dimension -d- results from the alignment of the lower edge of the name badge protective film to the edge in the rear lid.
    • Align the side dimension -c- to the brand emblem.
  2. Name Badge
    • Name badges for vehicles from 09/2020. Refer to DIMENSIONS - ADDITIONAL REAR NAME BADGES, VEHICLES FROM 09/2020 .
    • The height dimension -b- results from the alignment of the lower edge of the name badge protective film to the edge in the rear lid.
    • Side dimension -a- = 31 ± 1 mm, from the outer edge in the rear lid to the name badge without the technology label.
      NOTE:

      The "TSI" name badge is an example.

      The specified dimensions are the same for all name badges.
