Dimensions - Additional Rear Name Badges, Vehicles From 09/2020

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Follow the assembly instructions when installing the name badges. Refer to NAME BADGES, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

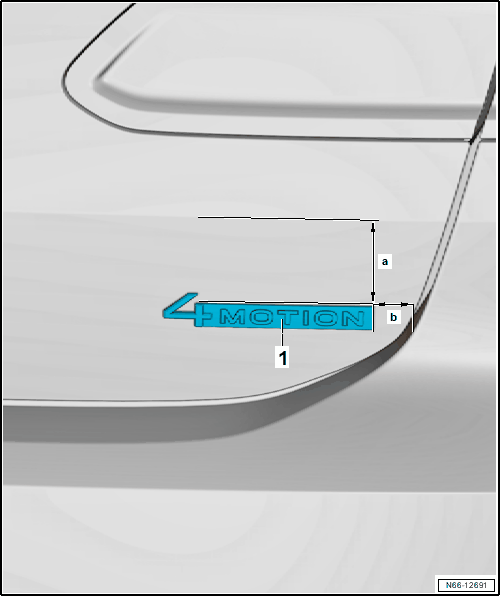

Name Badge
- Height -a-, 47 ± 1 mm, from the edge in the rear lid to the name badge
- Side dimension -b- = 23 ± 1 mm, from the outer edge of the rear lid to the name badge
  NOTE:
  The "4MOTION" name badge is an example.

  The specified dimensions are the same for all name badges.
