Center Muffler Heat Shield, Removing And Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine and Gearbox Jack:VAS 6931

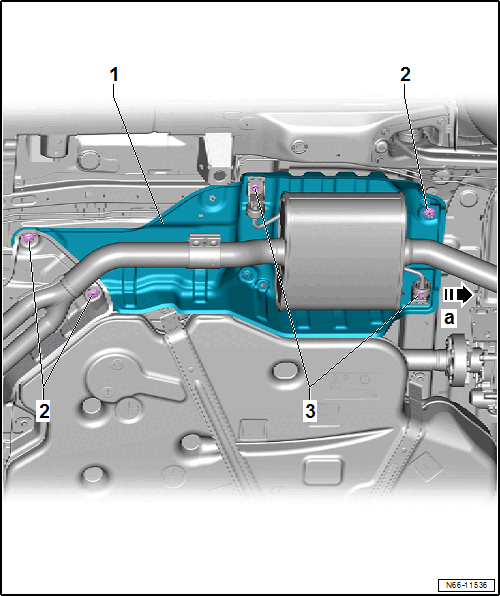

-- Loosen the mounting for the exhaust system -3- and lower it slightly using the Engine and Gearbox Jack:VAS 6931 . Refer to OVERVIEW - MUFFLER .
-- Loosen the lock washers -2-.
-- Remove the heat shield -1- rearward -arrow a-.
Installing
Install in reverse order of removal.
