Mounting Bracket, Removing And Installing, RHD: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the Windshield Wiper Motor -V-. Refer to WINDSHIELD WIPER MOTOR -V-, REMOVING AND INSTALLING .

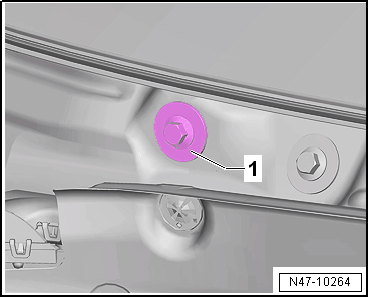

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Route the wiring harness -2- correctly so that it is not pinched.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake pedal. Refer to BRAKE PEDAL, REMOVING AND INSTALLING, LHD .

-- Remove the Accelerator Pedal Module -GX2-. Refer to ACCELERATOR PEDAL MODULE -GX2-, REMOVING AND INSTALLING .

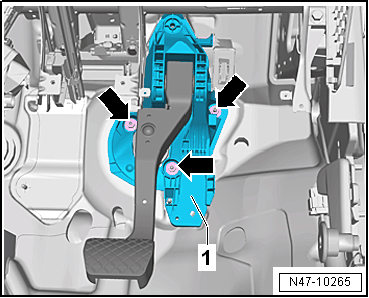

-- Remove the nuts -arrows- from the mounting bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
