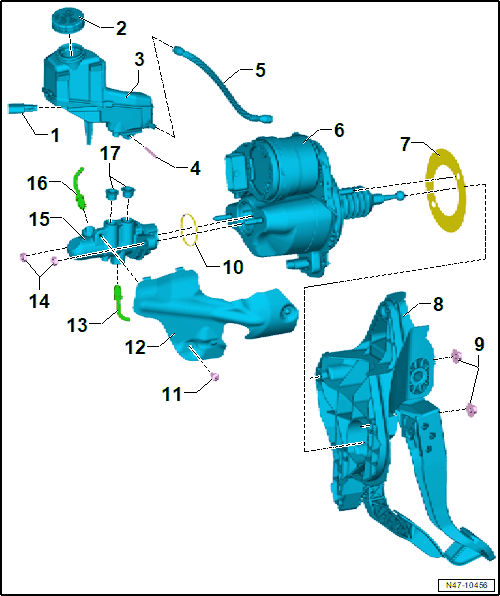

Overview - Brake Booster/Brake Master Cylinder, RHD

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

The brake master cylinder and brake booster can be replaced independently of one another.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Brake Fluid Level Warning Switch -F34-
Cap
Brake Fluid Reservoir
Locking Pin
Return Hose
- For vehicles with manual transmission
Brake Booster
- Removing and Installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING, RHD VEHICLE .
  The following components are integrated in the brake booster.
  - Brake Pedal Position Sensor -G100-
  - Brake Pedal Position Sensor 2 -G836-
  - Power Supply Sensor 1 -G730-
  - Power Supply Sensor 2 -G731-
  - Brake Booster Voltage Sensor -G822-
  - Brake Booster Temperature Sensor 1 -G838-
  - Brake Booster Temperature Sensor 2 -G839-
  - Brake Booster Motor Position Sensor -G840-
  - Brake Booster Control Module -J539-
  - Electro-Mechanical Brake Booster Motor -V548-
Seal
- For the brake booster
- Replace
- Bonded, only at the factory
- The bonding on the brake booster and bulkhead must not be replaced
Mounting Bracket with Brake Pedal
- Overview. Refer to OVERVIEW - BRAKE PEDAL, RHD .
- Brake Pedal, Removing and Installing. Refer to BRAKE PEDAL, REMOVING AND INSTALLING .
- Mounting Bracket, Removing and Installing. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING, RHD .
Nut
- Always replace if removed.
- 25 Nm
Seal
- Replace
Bolt
- 8 Nm
Heat Shield
Brake Line
- Brake master cylinder/primary piston circuit to hydraulic unit
- with an M12 x 1 thread.
- 14 Nm
Nut
- Always replace if removed.
- 22 Nm
Brake Master Cylinder
- Cannot be serviced. Replace as a complete unit if malfunctioning.
- Removing and Installing. Refer to BRAKE MASTER CYLINDER, REMOVING AND INSTALLING, RHD VEHICLES .
Brake Line
- Brake master cylinder/secondary piston circuit to hydraulic unit
- with an M12 x 1 thread.
- 14 Nm
Plugs
- To install, coat with brake fluid
