Overview - Brake Pedal, RHD
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The path of the brake pedal must not be shortened by extra floor mats.
Do not lubricate or grease the mounting pin. The mounting pin must remain dry.

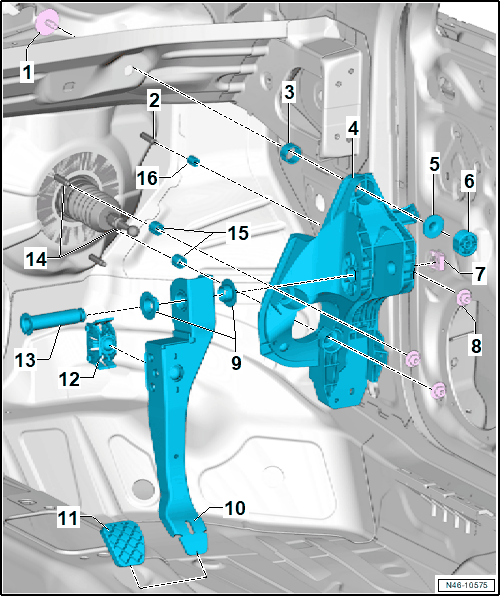

- Bolt
- 20 Nm
- Studs
- Guide Bushing
- Mounting Bracket
- Removing and Installing. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING, RHD .
- Threaded Insert
- Circlip
- Clip
- Nut
- 25 Nm
- Bearing Bushing
- Brake Pedal
- Brake Pedal, Removing from Brake Booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .
- Brake Pedal, Attaching to Brake Booster. Refer to BRAKE PEDAL, ATTACHING TO BRAKE BOOSTER .
- Removing and Installing. Refer to BRAKE PEDAL, REMOVING AND INSTALLING .
- Cap
- Mount
- For the brake booster push rod ball head
- Mounting Pin
- Do not lubricate or grease the mounting pin. The mounting pin must remain dry.
- Studs
- Guide Bushing
- Guide Bushing
