Rear Lid, Adjusting: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench, 6-50Nm:VAG 1331A

Fig 1: Ident ifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adjustment Gauge:3371

Fig 2: 3371 Special Tool
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The vehicle must be on all four wheels when adjusting the rear lid.

The latch -2- is bolted directly to the rear lid -1-. The latch cannot be adjusted.

The left and right adjusting buffers -4- are not meant for adjusting. They have the task of stabilizing and cushioning the rear lid.

The rear lid is properly adjusted when there is an overall even gap dimension when closed. It is not too far inward or outward. And the contours align.

The rear lid must engage in the striker without great force.

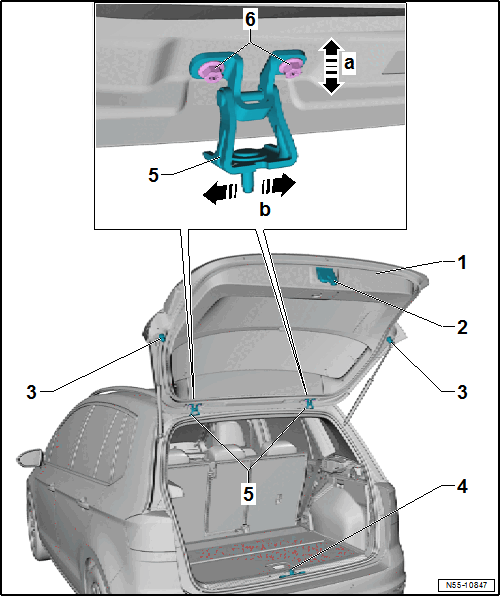

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To adjust or check the gap dimensions, use the Gauge - Gap Adjustment:3371 .

-- The engine compartment lid latch -2- cannot be adjusted.

-- Loosen the striker -4- and adjust after adjusting the hinge and the adjusting buffer. Refer to Striker, Adjusting .

-- By loosening the left and right bolts -6-, the rear lid -1- can be adjusted in the oversized holes on the hinge -5- in direction of -a and b arrows-.

-- After adjusting, apply a corrosion protection to the hinge and bolts -6-.

-- Adjust the adjusting buffer -3-.

Tightening Specifications

Bolts. Refer to OVERVIEW - REAR LID .
