Overview - Release Cable, From 02/24/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Mounting Bracket
- Release Cable

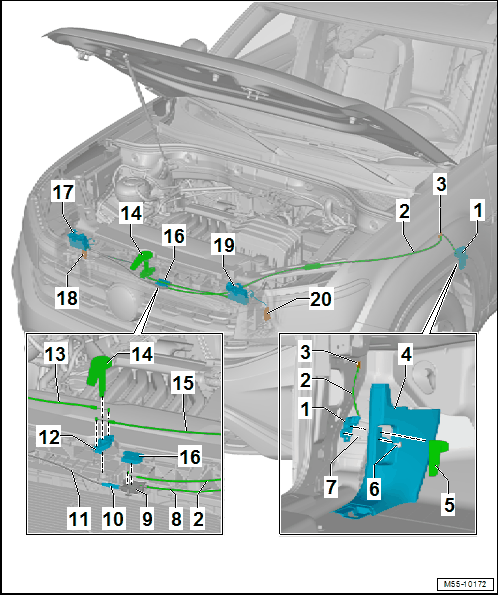

- From the mounting bracket -1- to the release cable coupling -9-
- Removing and Installing. Refer to RELEASE CABLE BETWEEN RELEASE CABLE COUPLING AND MOUNTING BRACKET, REMOVING AND INSTALLING, FROM 02/24/2020 .
- Sealing Grommet
- A-Pillar Trim Panel
- Operating Lever
- Removing and Installing. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
- Clip
- Overview. Refer to OVERVIEW - A-PILLAR TRIM PANEL .
- Bolt
- 2 Nm
- Release Cable
- From the release cable coupling -9- to the left latch -19-
- It is available with the release cable coupling -9- and the release cable -11- as a replacement part.
- Removing and Installing. Refer to RELEASE CABLE COUPLING WITH RELEASE CABLES, REMOVING AND INSTALLING, FROM 02/24/2020 .
- Release Cable Coupling
- It is available with the release cables -8 and 11- as a replacement part.
- Removing and Installing. Refer to RELEASE CABLE COUPLING WITH RELEASE CABLES, REMOVING AND INSTALLING, FROM 02/24/2020 .
- Adjustment Thread
- To adjust the synchronous movement of the latches
- Release Cable
- From the release cable coupling -9- to the right latch -17-
- It is available with the release cable coupling -9- and the release cable -8- as a replacement part.
- Removing and Installing. Refer to RELEASE CABLE COUPLING WITH RELEASE CABLES, REMOVING AND INSTALLING, FROM 02/24/2020 .
- Unlocking Element
- Removing and Installing. Refer to Release Lever, Removing: .
- Release Cable
- From the right latch -17- to the unlocking element -12-
- Removing and Installing. Refer to RELEASE CABLE, REMOVING AND INSTALLING, RIGHT LATCH TO RELEASE LEVER, FROM 02/24/2020 .
- Release Lever
- Removing and Installing. Refer to Release Lever, Removing: .
- Release Cable
- From the left latch -19- to the unlocking element -12-
- Removing and Installing. Refer to RELEASE CABLE, REMOVING AND INSTALLING, LEFT LATCH TO RELEASE LEVER, FROM 02/24/2020 .
- Cap
- Pay attention to the arrow on the cap. It indicates where the release cable -2- must be inserted.
- Right Latch
- With Engine Hood Contact Switch -F266-
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING, FROM 03/01/2020 .
- Connector
- For Engine Hood Contact Switch -F266-
- Left Latch
- With Hood Contact Switch 2 -F329-
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING, FROM 03/01/2020 .
- Connector
- For Hood Contact Switch 2 -F329-
