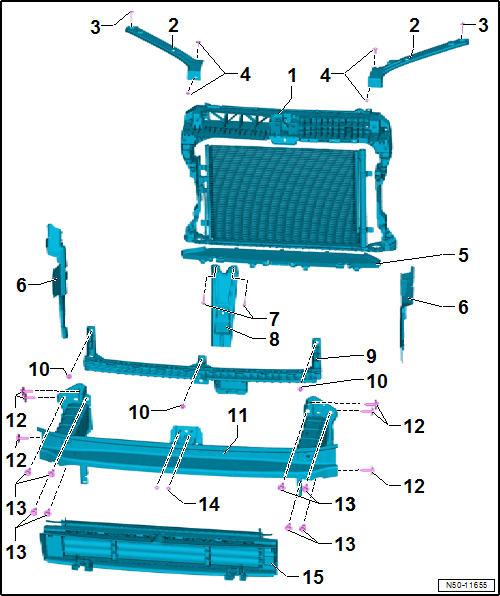

Overview - Lock Carrier, Through 02/24/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Different versions depending on the model. Refer to the appropriate Electronic Parts Information for the allocation.
- Lock Carrier with Attachments
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Service Position, Implementing and Resetting. Refer to SERVICE POSITION, SETTING AND RESETTING .
- Support
- Left and right
- Bolt
- 8.0 Nm
- Quantity: 1 on each side
- Bolt
- 8.0 Nm
- Quantity: 2 on each side
- Air Duct
- Lower
- Engaged with the lock carrier
- Air Duct
- Side
- Engaged with the lock carrier
- Bolt
- 12 Nm
- Quantity: 2 on each side
- Support, Lock Carrier
- Center Guide
- Bolt
- 8.0 Nm
- Quantity: 3
- Bumper Carrier
- Bolt
- 8.0 Nm
- Quantity: 3 on each side
- Bolt
- 55 Nm
- Quantity: 4 on each side
- Nut
- 12 Nm
- Quantity: 2
- Radiator Shutter
- Additionally
- Removing and installing. Refer to RADIATOR SHUTTER, REMOVING AND INSTALLING - 2.0L , RADIATOR SHUTTER, REMOVING AND INSTALLING - 3.6L .
