Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drain the engine oil. Refer to ENGINE OIL, DRAINING, REPLACING OIL FILTER AND FILLING .

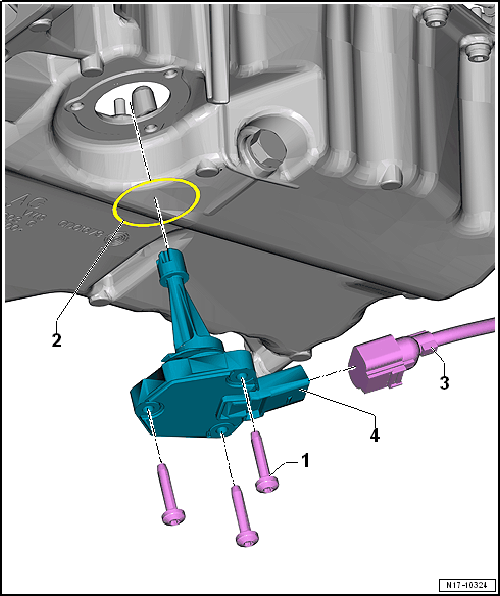

-- Disconnect the connector -3-.

-- Remove the bolts -1- and the Oil Level Thermal Sensor --.

Installing

Install in the reverse order of removal while noting the following:

-- Replace the seal -2-.

-- Fill with engine oil and then check the level. Refer to ENGINE OIL, DRAINING, REPLACING OIL FILTER AND FILLING .

Tightening Specifications

Refer to OVERVIEW - OIL PAN/OIL PUMP
