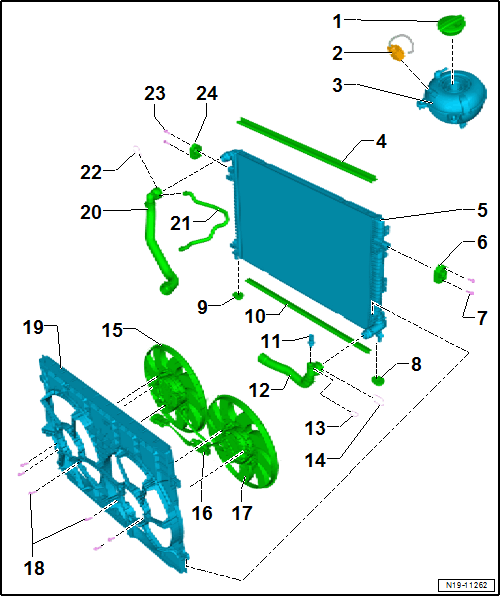

Overview - Radiator/Radiator Fan
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Spring clamps secure the coolant hoses to the radiator.
Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Cap
- Check using Cooling System Tester:V.A.G 1274B and Cooling System Tester - Adapter:V.A.G 1274/9 . Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- The pressure release valve must open at a pressure of 1.4 to 1.6 bar (20.31 to 23.21 psi)
- Connector
- Expansion Tank
- Perform a leak test for the cooling system using the Cooling System Tester:V.A.G 1274B and Cooling System Tester - Adapter:V.A.G 1274/8 . Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Upper Seal
- Radiator
- Removing and Installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- After replacing, replace the entire amount of coolant.
- Bearings
- For the radiator
- 5 Nm
- Right Mount
- Insert in lock carrier
- Left Mount
- Insert in lock carrier
- Lower Seal
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and Installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .
- Lower Coolant Hose
- From connection for coolant regulator
- Clip
- Check for secure fit
- Clip
- Check for secure fit
- Radiator Fan -VX57-
- Removing and installing
- With Radiator Fan -V7- and Radiator Fan Control Module -J293-
- Connector
- Radiator Fan 2 -V177-
- Removing and Installing. Refer to RADIATOR FAN, REMOVING AND INSTALLING .
- 5 Nm
- Fan Shroud
- Removing and Installing. Refer to FAN SHROUD, REMOVING AND INSTALLING .
- Coolant Hose
- From the rear coolant pipe
- Coolant Hose
- For venting
- Clip
- Check for secure fit
- 5 Nm
- Bearings
- For the radiator
