Component Location Overview - Cooling System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

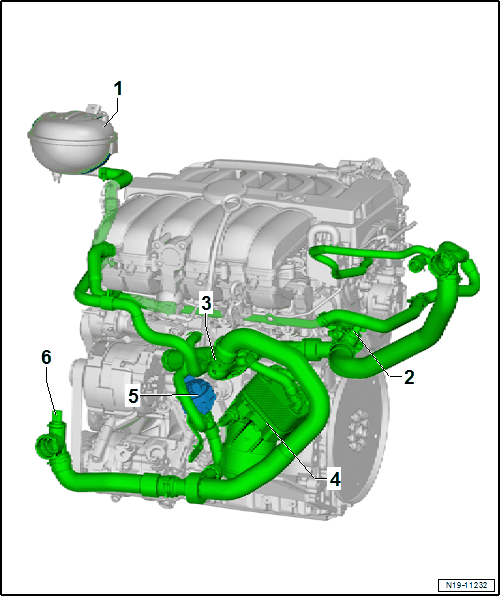

Engine from the front, without engine preheater
- Coolant Expansion Tank
- Engine Coolant Temperature Sensor on Engine -G82-
- Removing and Installing. Refer to Engine Coolant Temperature Sensor on Engine Output -G82-, REMOVING AND INSTALLING .
- Thermostat Housing
- Engine Oil Cooler
- Coolant Recirculation Pump -V50-
- Removing and Installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and Installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .

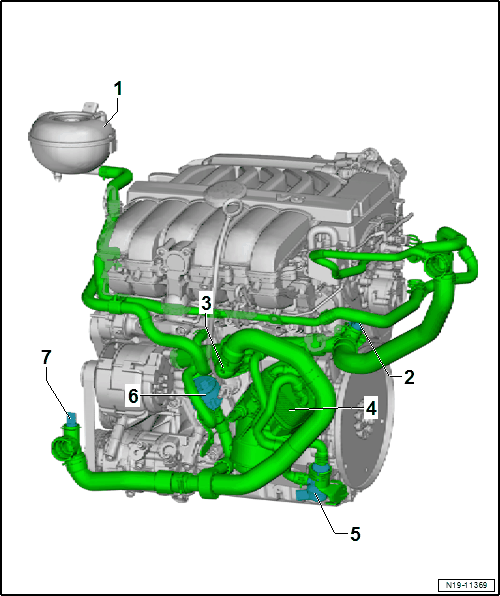

Engine from the front, with engine preheater
- Coolant Expansion Tank
- Engine Coolant Temperature Sensor on Engine -G82-
- Removing and Installing. Refer to Engine Coolant Temperature Sensor on Engine Output -G82-, REMOVING AND INSTALLING .
- Thermostat Housing
- Engine Oil Cooler
- Engine Preheating Element -Z97-
- Refer to OVERVIEW - ENGINE PREHEATER
- Coolant Recirculation Pump -V50-
- Removing and Installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and Installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .

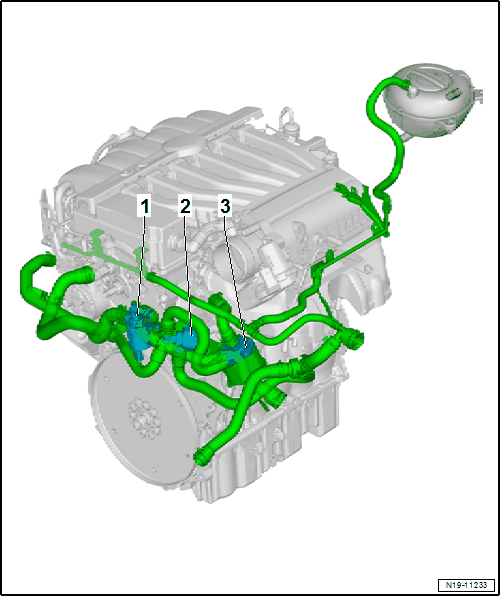

Engine on transmission side
- Transmission Coolant Valve -N488-
- Removing and Installing. Refer to Transmission Coolant Valve -N488-, REMOVING AND INSTALLING .
- Coolant Shut-Off Valve -N82-
- Removing and Installing. Refer to Coolant Shut-Off Valve -N82-, REMOVING AND INSTALLING .
- Heater Support Pump -V488-
- Removing and Installing. Refer to Heater Support Pump -V488-, REMOVING AND INSTALLING .
