Overview - Engine PREHEATER

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

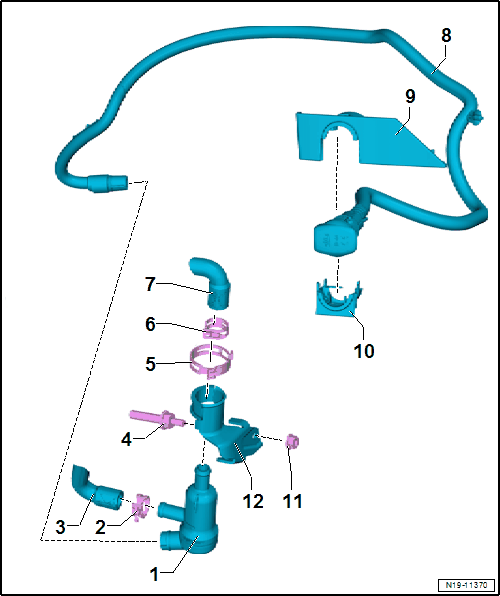

Fig 1: Exploded View Of Engine Preheater
GWWN19-11370Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Engine Preheating Element -Z97-
  2. Hose Clamp
  3. Coolant Hose
  4. Bolt
  5. Clamp
    • For securing the Engine Preheating Element -Z97-
  6. Hose Clamp
  7. Coolant Hose
  8. Connecting Cable
  9. Mount
  10. Mount
  11. Nut
    • 20 Nm
  12. Bracket
