Engine Coolant Temperature Sensor -G62-, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The Engine Coolant Temperature Sensor -G62- is installed between the intake manifold and generator in the cylinder head.

Removing

-- Remove the ribbed belt tensioner. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .

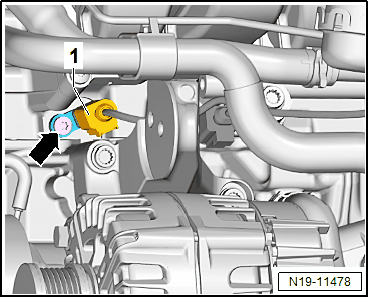

-- Remove the bolt for the Engine Coolant Temperature Sensor -- -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Engine Coolant Temperature Sensor -- on the connector -1- from the cylinder head.

-- Remove the connector from the Engine Coolant Temperature Sensor --.

CAUTION:

The O-ring and the support washer can get stuck in the cylinder head. Check if the Engine Coolant Temperature Sensor -G62- is >>complete<<.

-- The following components must be on the Engine Coolant Temperature Sensor --.

Fig 1: Identifying Engine Temperature Control Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Support Washer
O-Ring

NOTE:

If the O-ring and the support washer are stuck in the cylinder head, they must be pulled out with a wire. To do so, bend a wire with an approximately 1.5 mm diameter that is slightly bent at the end.

Installing:

-- Coat the O-ring with coolant additive.

-- Place the Engine Coolant Temperature Sensor -- in the installation position and press it into the cylinder head with a suitable tool.

Install in reverse order of removal, note the following:

Tightening specification for the Engine Coolant Temperature Sensor -- : 5 Nm.
