Wiper Arm, Adjusting

Procedure

-- Loosen the windshield wiper arm. Refer to Windshield Wiper Arm, Removing and Installing  .

Conditions

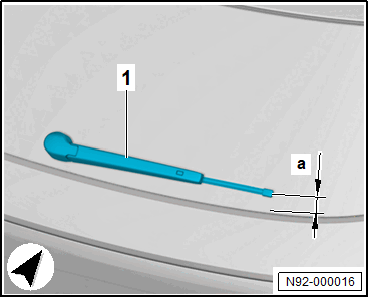

• The distance -a- on the end of the wiper blade to the lower edge of the rear window must be 31 +/-5 mm.

-- Adjust the end position of the wiper blade by repositioning the wiper arms -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the wiper arm nut -1-.

-- Switch the ignition on.

-- Activate "rear wiping" and let the wiper arm run to end position.

-- Check the adjustment of the wiper arm.

Tightening Specifications

• Refer to Overview - Rear Window Wiper System  .
