92 Wiper/Washer Systems
>>
Rear Window Wiper System
>>
Overview - Rear Window Wiper System
Overview - Rear Window Wiper System

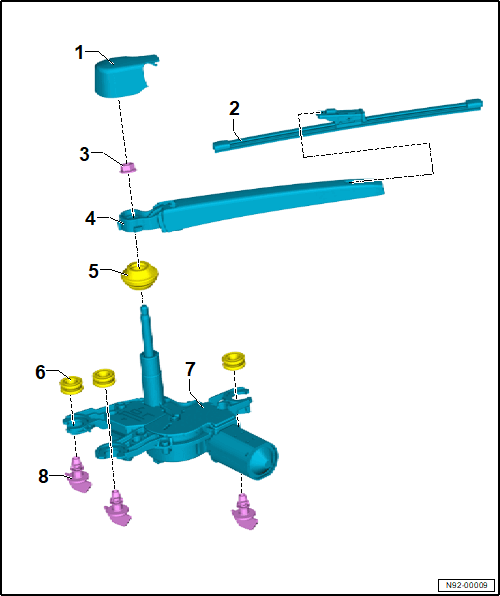

Fig 1: Exploded View Of Rear Window Wiper System
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Cap
Wiper Blade
Refer to
Wiper Blade, Removing and Installing
.
Nut
12 Nm
Windshield Wiper Arm
Refer to
Windshield Wiper Arm, Removing and Installing
.
Rear Window Seal
Rubber Ring
Quantity: 3
Rear Window Wiper Motor -V12-
Refer to
Rear Window Wiper Motor V12, Removing and Installing
.
Clip
Quantity: 3
Replace after removing
