Rear Window Wiper Motor V12, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Coat the inside of the seal in the rear window with lubricant. Refer to the appropriate Electronic Parts Information.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

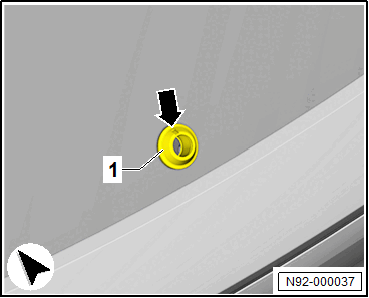

-- Check the seal -1- for proper seating. The seal marking -arrow- must align with the marking on the rear window.

-- Refer to WIPER ARM, ADJUSTING  .
